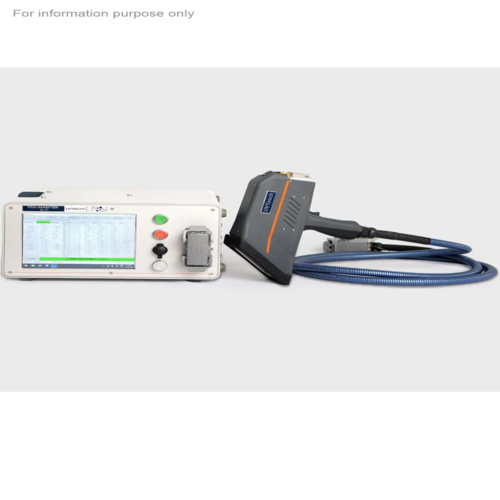

Hitachi PMI Master Smart Mobile Spectrometer

Hitachi PMI Master Smart Mobile Spectrometer Specification

Temperature Resistance
Ambient Operating Conditions

Features
Ultra-Portable, Lightweight, Fast, Wireless Connectivity, Battery Operated, Robust Design

Power Supply
Li-ion Battery / Mains

Speed Range
One-second Measurement Time

Shape
Compact, Ergonomic

Display Type
Integrated Touchscreen Display

Accuracy
High Analytical Accuracy for Metal Elements

Control Type
Touchscreen or Laptop-Based

Type
Mobile Spectrometer

Dimension (L*W*H)
490 x 180 x 485 mm

Equipment Type
Optical Emission Spectrometer

Equipment Materials
Rugged Aluminum Housing

Power
Rechargeable Battery / AC Power

Voltage
100-240 V AC

Material
Metal Alloy Analysis

Application
Positive Material Identification (PMI), Quality Control, Alloy Identification, Metal Sorting

Standards
Complies with global safety and quality standards

Calibration
Factory Pre-Calibrated; User Calibration Possible

Operating Environment
-10 °C to +45 °C

Battery Life
Up to 8 hours continuous operation

Data Output Formats
PDF, CSV, Excel

Service Support
Global technical support network

Memory Storage
Internal + External (USB)

Sample Types
Ferrous and Non-Ferrous Metals, Small Parts, Pipes, Wires

Excitation Source
Portable Arc/Spark Source

Interface Options
USB, Wi-Fi, Ethernet

Detector
CCD (Charge Coupled Device) Detector

Software
Hitachi ExTOPE Connect

Weight
15 kg including battery

Element Detection
C, Si, Mn, P, S, Cr, Mo, Ni, Al, Ti, Nb, V, W, Cu, Co, Pb, Sn, Zn, Fe, and more

Analysis Method
Optical Emission Spectrometry (OES)

Laser Safety
Class 1 for Safe Use

Hitachi PMI Master Smart Mobile Spectrometer Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Hitachi PMI Master Smart Mobile Spectrometer

The Hitachi PMI Master Smart Mobile Spectrometer is a portable, advanced spark optical emission spectrometer (OES) designed for on-site material analysis. Its compact, lightweight design and robust features enable precise identification and verification of metal alloys, ensuring quality control and material compliance. Equipped with a rechargeable battery and minimal argon consumption, it is ideal for industries requiring quick and reliable metal analysis in field conditions, such as construction, automotive, and aerospace.

Note: The price mentioned above is for reference only. Do not consider it for purchase. For the actual price and more product details, please contact us at +91 98508 70860, +91 84461 74263.

Key Features:

Compact and Lightweight: Weighs only 15 kg for easy portability.
Hot Surface Measurement: Analyzes surfaces up to 300C.
Battery-Powered: Up to 300 spark measurements or 200 arc analyses per charge.
Minimal Argon Use: Efficient with only 1 liter of argon for multiple analyses.
Advanced Optics: Stable and accurate results even under motion or temperature fluctuations.
Integrated GRADE Database: Over 15 million records from 350,000+ materials.
Cloud Data Management: Allows seamless data sharing and reporting.

Industries Served:

Construction
Automotive
Aerospace
Energy and Utilities
Scrap and Recycling Industry
Manufacturing
List no. R
Disclaimer: UNLESS OTHERWISE INDICATED, THE CONTENT OF THIS WEBSITE IS THE PROPRIETARY PROPERTY OF ITS OWNERS. However, trademarks, service marks and/or logos (called "marks") herein associated with the products listed on this website are the property of their respective owners. If they appear with the listed products, it is only used for the purpose of identification of those products. We do not claim any association with the mark owners, unless otherwise so specified. MEANING OF LIST NUMBER: R- Refurbished, PO - Preowned, U - Used, T Trading, M Own Manufactured, AD - Authorized Dealer of Original Equipment Manufacturer.

Advanced Analysis in the Field

Hitachi's PMI Master Smart Mobile Spectrometer provides rapid, high-precision metal analysis in a truly mobile form. It uses optical emission spectrometry (OES) with a portable arc/spark source to deliver results in just one second per measurement, crucial for efficient material sorting, quality control, and positive material identification directly at the point of need.

Unmatched Connectivity and Data Management

Equipped with integrated touchscreen controls, versatile interface options (USB, Wi-Fi, Ethernet), and both internal and external memory, this spectrometer ensures seamless data collection, transfer, and reporting. Output formats like PDF, CSV, and Excel suit any workflow, while Hitachi's ExTOPE Connect software supports centralized remote management and data sharing.

Designed for Durability and Versatility

Engineered with a rugged aluminum housing and IP-friendly design, the device thrives in challenging industrial environments from -10C to +45C. It analyzes ferrous and non-ferrous metals, pipes, small parts, and wires. Its compact and ergonomic shape, along with a battery life of up to 8 hours, ensures unhampered field mobility for users spanning manufacturers, importers, and quality controllers.

FAQ's of Hitachi PMI Master Smart Mobile Spectrometer:

Q: How does the Hitachi PMI Master Smart Mobile Spectrometer identify different metal elements?

A: The device uses optical emission spectrometry (OES) with a portable arc/spark source to excite metal samples, measuring the light emitted by different elements. Its CCD detector then analyzes these signals to accurately identify and quantify elements such as C, Si, Mn, Cr, Ni, Fe, and many others.

Q: What types of samples can be analyzed with this spectrometer?

A: The spectrometer is ideal for analyzing ferrous and non-ferrous metals including small parts, pipes, wires, and metal objects commonly handled by manufacturers, fabricators, and metal traders. Its ergonomic design and advanced arc/spark source enable use on a wide range of sample shapes and sizes.

Q: Where can the Hitachi PMI Master Smart be used effectively?

A: Its rugged construction and wide operating temperature range (-10 C to +45 C) make it suitable for diverse environments, from production facilities to outdoor sites. It meets global safety and quality standards, allowing worldwide deployment for applications in manufacturing, exporting, metal sorting, and quality assurance.

Q: What is the process for collecting and managing analytical data?

A: Analyzed results are displayed instantly on the integrated touchscreen. Data can be saved internally or to an external USB drive, and exported in PDF, CSV, or Excel format. With ExTOPE Connect software, users can manage, share, and report results across multiple devices via Wi-Fi or Ethernet connections.

Q: How can users benefit from the device's mobility and battery operation?

A: Weighing just 15 kg and equipped with a rechargeable Li-ion battery lasting up to 8 hours of continuous operation, the PMI Master Smart enables efficient on-site analysis without the need for constant mains power, supporting fast-paced quality control and material verification.

Q: What calibration options are available for maintaining analytical accuracy?

A: The system comes factory pre-calibrated for high analytical accuracy. Users can also perform their own calibrations as needed, ensuring precise results over a variety of metal alloys and sample conditions.

Q: When is it appropriate to use user calibration over factory calibration?

A: User calibration is recommended when analyzing unique alloy types, after significant changes in operating conditions, or when maximum analytical precision is required. This flexibility enhances reliability for specialized industrial applications.
