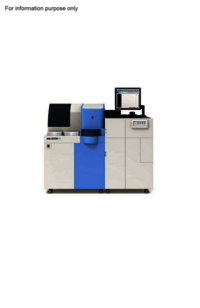

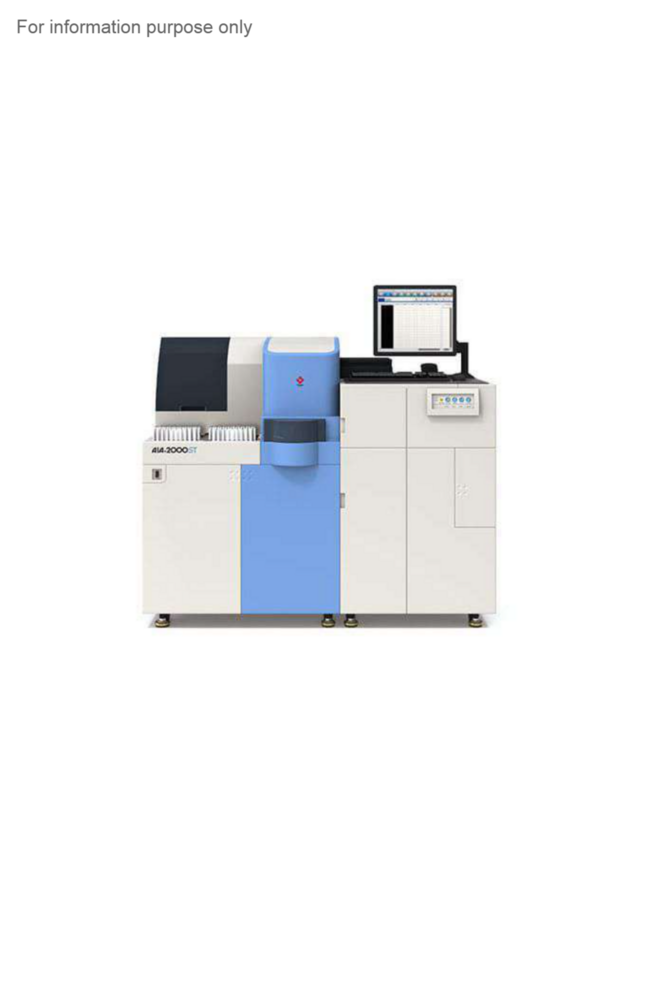

Tosoh AIA-2000 Automated Enzyme Immunoassay Analyzer

Tosoh AIA-2000 Automated Enzyme Immunoassay Analyzer Specification

Shape
Rectangular

Control Type
Microprocessor Controlled

Features
Continuous random access, Automated loading and processing, Barcode reader, Real-time monitoring, Large onboard capacity, User-friendly interface, Data storage capability, Error alert system

Power Supply
AC power connection

Display Type
Large Color LCD Touchscreen

Temperature Resistance
Ambient Operating Conditions 15C 32C

Accuracy
High precision immunoassay measurement

Speed Range
Up to 200 tests/hour

Type
Automated Enzyme Immunoassay Analyzer

Dimension (L*W*H)
1160 mm x 740 mm x 720 mm

Equipment Type
Automated Immunoassay Analyzer

Equipment Materials
High-grade stainless steel, ABS plastic components

Power
600 VA

Voltage
100-240 V, 50/60 Hz

Material
Metal and plastic composite

Application
Clinical Diagnostic Laboratory, Immunoassays, Biochemistry, Sample Analysis

Operating Humidity
10% to 85% (non-condensing)

Incubation Positions
16-incubator carousel

Languages Supported
Multilingual user interface

Sample Capacity
200 samples onboard

Waste Management
Automated waste handling system

Throughput
Up to 200 tests/hour

Data Storage
Internal memory for results and logs

Assay Types Supported
ELISA, Chemiluminescent, Enzyme Immunoassays

Sample Type
Serum, Plasma, Whole Blood, Urine

Noise Level
< 60 dB during operation

Data Connectivity
USB, RS232, Ethernet

Reagent Capacity
Up to 40 reagent packs

Safety Standards
CE, IVD-compliant

Pipetting Capability
Automated multi-probe pipetting

Software Compatibility
Compatible with LIS systems

Calibration & QC
Automated calibration and quality control testing

Operating Weight
Approx. 150 kg

About Tosoh AIA-2000 Automated Enzyme Immunoassay Analyzer

The Tosoh AIA-2000 is a high-throughput, fully automated enzyme immunoassay analyzer designed for large hospitals, reference laboratories, and core labs. Utilizing fluorescence enzyme immunoassay (FEIA) technology, it offers continuous random access processing with a throughput of up to 200 tests per hour. The system supports a broad test menu, including assays for thyroid function, cardiac markers, tumor markers, reproductive hormones, anemia markers, and metabolic assays. Its user-friendly design and advanced features aim to enhance laboratory efficiency and productivity.

Note: The price mentioned above is for reference only. Do not consider it for purchase. For the actual price and more product details, please contact us at +91 98508 70860, +91 84461 74263.

Key Features

Throughput: Up to 200 tests per hour
Continuous loading random access system
Fluorescence enzyme immunoassay (FEIA) technology
Unit Dose Test Cup (UDTC) technology with freeze-dried reagents
Reaction time: Approximately 10 minutes for most assays
First result available within 20 minutes
Calibration stability: Up to 90 days
Sample volume: 10 to 125 uL
Sample clot detection via pressure detection
Automated features: Pretreatment, dilution, daily maintenance
Walk-away time: Approximately 4 hours
Capacity: 960 tests (48 trays), 576 tips (6 tip racks), 2 substrate bottles
Three incubators and two sampling arms
Barcoded primary tube sampling
Dual clot detection system
Integrated quality control with Levey-Jennings charts
User interface: Windows Vista-based software
Dimensions (W x D x H): 1500 x 907 x 1260 mm
Weight: 400 kg
Power supply: 100 to 240 VAC, 50/60 Hz

List No. R

Disclaimer: UNLESS OTHERWISE INDICATED, THE CONTENT OF THIS WEBSITE IS THE PROPRIETARY PROPERTY OF ITS OWNERS. However, trademarks, service marks and/or logos (called "marks") herein associated with the products listed on this website are the property of their respective owners. If they appear with the listed products, it is only used for the purpose of identification of those products. We do not claim any association with the mark owners, unless otherwise so specified. MEANING OF LIST NUMBER: R - Refurbished, PO - Preowned, U - Used, T - Trading, M - Own Manufactured, AD - Authorized Dealer of Original Equipment Manufacturer.

Advanced Performance & Versatile Assays

The AIA-2000 is designed to handle various assay types including ELISA, chemiluminescent, and traditional enzyme immunoassays. This versatility enables laboratories to process a wide range of clinical samples-from serum to urine-enhancing diagnostic capabilities without compromise.

Optimized Workflow and Efficiency

With a throughput of up to 200 tests per hour, the analyzer accommodates high sample volumes, reducing turnaround times. Automated sample and reagent loading, calibration, and quality control streamline daily workflows, allowing laboratory personnel to focus on result interpretation and improved patient care.

Cutting-Edge Connectivity & User Experience

Large color LCD touchscreen and a multilingual interface ensure intuitive operation for global users. Integration with Laboratory Information Systems (LIS) via multiple connectivity options supports seamless data transfer, real-time monitoring, and secure result storage, maximizing laboratory efficiency and compliance.

FAQ's of Tosoh AIA-2000 Automated Enzyme Immunoassay Analyzer:

Q: How does the Tosoh AIA-2000 automate the immunoassay testing process?

A: The analyzer automates core processes including sample loading, reagent management, pipetting, incubation, calibration, and data handling. Once samples and reagents are loaded, the device performs all steps, from dispensing to measurement, enabling high-throughput unattended operation.

Q: What types of assays and samples can the AIA-2000 process?

A: The Tosoh AIA-2000 supports a range of immunoassay types such as ELISA, chemiluminescent, and enzyme immunoassays. It can analyze clinical samples including serum, plasma, whole blood, and urine, making it suitable for diverse diagnostic applications.

Q: When should calibration and quality control be performed on the AIA-2000?

A: Automated calibration and quality control procedures can be scheduled as required-typically at the start of each testing session or as dictated by regulatory guidelines. The analyzer's built-in systems perform these tasks, ensuring consistent accuracy and reliability.

Q: Where can the Tosoh AIA-2000 be installed and operated effectively?

A: This analyzer is optimized for clinical diagnostic laboratories and biochemistry departments. Its robust design, moderate footprint, and ambient operating condition tolerance (15C-32C) make it suitable for most healthcare laboratory environments worldwide.

Q: What is the process for connecting the analyzer to a Laboratory Information System (LIS)?

A: Integration with LIS is achieved via USB, RS232, or Ethernet connections. The system is designed for straightforward setup, allowing laboratories to securely transfer and archive test results, streamlining data management and reporting.

Q: How does using the AIA-2000 benefit laboratory workflow?

A: The system's rapid testing speed, large onboard capacity, continuous access, and automated functions greatly enhance productivity. Automated error alerts, waste handling, and data logging further optimize laboratory efficiency and diagnostic performance.
