TA Instruments DSC 25P

TA Instruments DSC 25P Specification

Dimension (L*W*H)
44 * 28 * 15 cm

Size
Medium (Bench-top Instrument)

Height
15 cm Centimeter (cm)

Product Type
High-Pressure Differential Scanning Calorimeter

Equipment Type
Analytical Thermal Analysis Instrument

Weight
Approximately 9.4 kg Kilograms (kg)

Length
44 cm Centimeter (cm)

Width
28 cm Centimeter (cm)

Material
Powder-coated steel housing; silver furnace; stainless steel internal components

TA Instruments DSC 25P Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

About TA Instruments DSC 25P

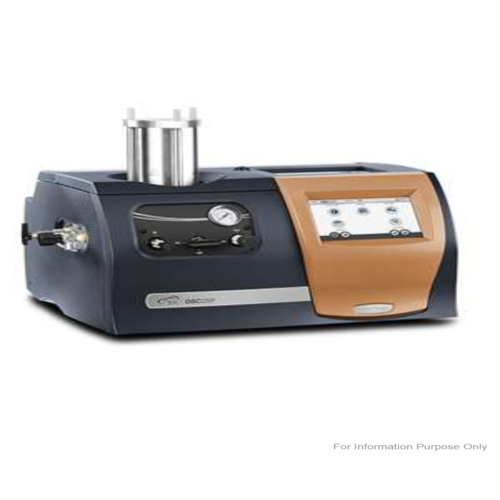

The Discovery DSC 25P is a high-pressure Differential Scanning Calorimeter (DSC) designed for precise thermal analysis of materials under varying pressure conditions. It enables the study of thermal transitions, chemical reactions, and oxidative stability/decomposition of pressure-sensitive materials. With a temperature range from -130C to 550C and a pressure range up to 7 MPa (1000 psi), it provides accurate heat flow measurements in inert, oxidizing, or reducing atmospheres. The instrument is equipped with a Fusion Cell featuring a pressure transducer and Tzero thermocouple, ensuring precise temperature control and stable heat flow baseline performance. Its user-friendly interface includes a One-Touch-Away touchscreen for real-time monitoring of pressure, temperature, and time.

Note: The price mentioned above is for reference only. Do not consider it for purchase. For the actual price and more product details, please contact us at +91 97663 07660, +91 98505 58881.

Key Features:

Temperature Range: -130C to 550C
Pressure Range: 1 Pa to 7 MPa (0.0001 to 1000 psi)
Modulated DSC (MDSC): For efficient separation of complex thermal events

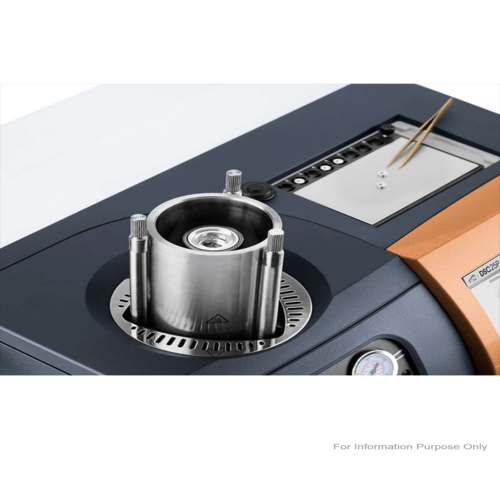

Fusion Cell: With pressure transducer and Tzero thermocouple for precise measurements

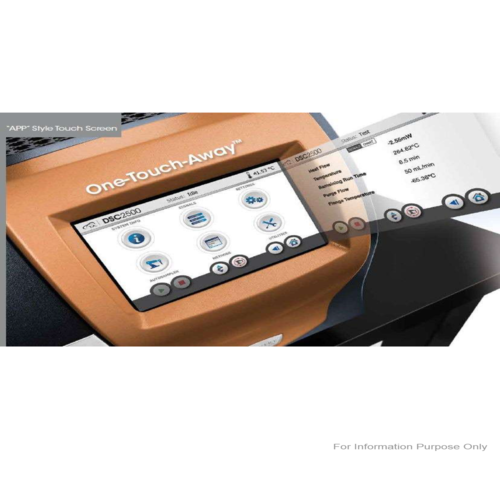

One-Touch-Away Interface: Touchscreen for easy operation and real-time monitoring
TRIOS Software: For versatile control and data analysis
Warranty: 5-year cell and furnace warranty.

Industries Served:

Polymer Industry: For analyzing thermal stability and crystallization behavior
Pharmaceuticals: To study drug formulations and stability
Petrochemicals: For evaluating oxidative stability of fuels and lubricants
Materials Science: To investigate phase transitions and decomposition
Environmental Testing: For assessing the thermal behavior of environmental samples
List No. - R
