Fibroscan 502 Touch

About Fibroscan 502 Touch

Product Description

An intelligent solution to aid clinical diagnosis, FibroScan uses state of the art fibrosis and quantification with the most advanced non-invasive technology. This unique, accurate and efficient device brings you extra clinical confidence to support your patient management.

Based on patented Vibration-Controlled Elastography (VCTE), FibroScan 502 Touch provides multiple controls for reliable, accurate and reproducible assessment of liver tissue stiffness : Controlled Vibration, Controlled Energy, Controlled Algorithm.

Controlled Vibration :

• A custom-designed ergonomic transducer generates a controlled vibration which induces a mechanical shear wave with consistent frequency and energy.
• Static force is monitored in real time to prevent wave distortions.
• Shear wave center frequency is 50 Hz.

Controlled Energy :

• Propagation of the mechanical shear wave through the skin and liver tissues is measured using low energy 3.5 MHz ultrosound.
• Large explored volume 3 cm³ (at least 100 times more than biopsy).
• Measurement depths from 15 to 75 mm depending on probe.

Controlled Algorithm :

• VCTE guidance process ensures the operator obtains measurements of the liver
• A sophisticated algorithm computes liver stiffness and ultrasound attenuation
• A quality controlled calculation is performed automatically, the algorithm selects the valid measurements.

• FibroScan procedures are easy to put into routine practice for all chronic liver diseases.
• To date, more than 369 peer reviewed original articles have demonstrated the usefulness of liver stiffness measurement with the FibroScan.
• As a stand-alone tool or as an adjunct to liver biopsy, FibroScan allows accurate decisions as part of your patient management strategy.
• From mass screening to follow-up of post transplanted patients and prognostic value, liver stiffness measured by FibroScan has a wide range of use.

• FibroScan procedures are easy to put into routine practice for all chronic liver diseases.
• To date, more than 369 peer reviewed original articles have demonstrated the usefulness of liver stiffness measurement with the FibroScan
• As a stand-alone tool or as an adjunct to liver biopsy, FibroScan allows accurate decisions as part of your patient management strategy
• From mass screening to follow-up of post transplanted patients and prognostic value, liver stiffness measured by FibroScan has a wide range of use

17 touch screen

• Optimal comfort & image quality in all situation
• high contrast & brightness
• wide viewing angle

Advanced connectivity options

• Save & export data to removable driver or network

2 probe connectors

• Connect two probes simultaneously

Front And rear handles

• Easy to move and manipulate

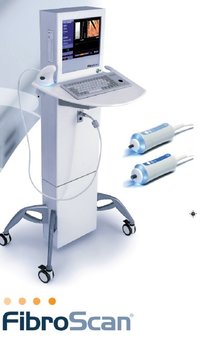

Product Image
